Trench Sheet Piles
Trench sheets are designed to support vertical faces of small to medium excavations. They are widely used in pipeline installation and temporary earth retaining systems, providing a safe working environment and efficient excavation support.
Installation Method
Trench sheets can be installed quickly using excavators equipped with quick release shackles through lifting holes located at the ends of the sheets. This allows fast positioning and removal during construction.
Driving is performed using a driving cap, which protects the sheet from damage during installation. During extraction, specialized clamps are used to prevent deformation and maintain sheet integrity.
Structural Function
Trench sheet piles are primarily used to support earth banks and prevent soil collapse during excavation. They ensure worker safety while maintaining stability in trenching operations.
Due to their structural design, trench sheets are especially effective for:
- Temporary excavation support
- Pipeline trenching
- Waterway bank protection
Reusability & Lifecycle
Trench sheets can be reused multiple times because they can be easily extracted without significant deformation. This makes them a highly economical solution for repeated construction projects.
Actual reuse cycles depend on:Sheet length，Soil conditions，Handling and extraction methods.
Profile Types & Connection

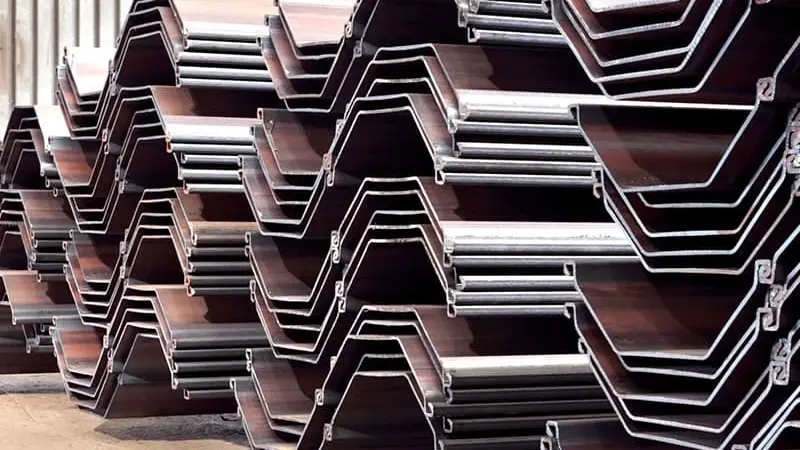

Steel trench sheets are available in different configurations:
- Overlapping trench sheets – without interlocks, simple connection
- Interlocking trench sheets – similar to traditional sheet piles with interlocks
Since trench sheets are produced using cold rolling technology, various profiles can be manufactured, including RC sections and other customized shapes.
Manufacturing & Customization
Trench sheets are manufactured using cold forming processes, allowing flexible production in terms of:Width,Height,Thickness,Length,Steel grade
👉 This flexibility enables precise adaptation to different project requirements.
Engineering Service Capability
We provide a complete range of services throughout the project lifecycle:
- Trench design and engineering calculation
- Sheet pile production and supply
- Installation support and driving solutions
- Extraction and reuse guidance
👉 Clients can benefit from optimized design and cost-effective execution from the initial stage.
Technical Parameter Table

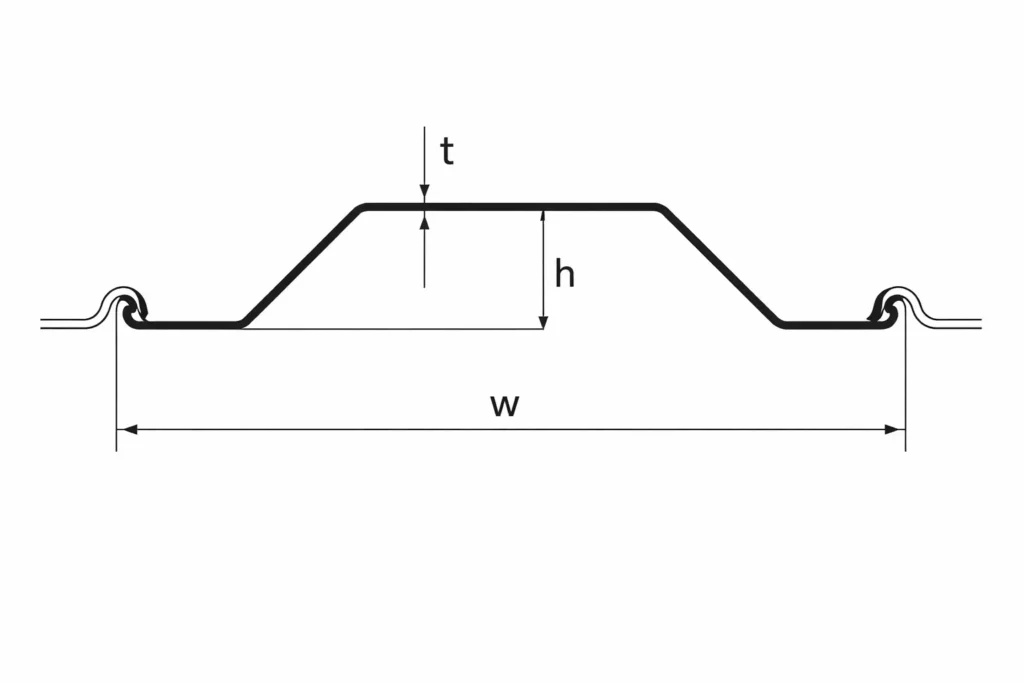

| Section | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg/m) | Inertia (cm⁴/m) | Section Modulus (cm³/m) |
|---|
| GPT600-6 | 600 | 78 | 6 | 37.5 | 722 | 184 |
| GPT600-8 | 600 | 80 | 8 | 50 | 955 | 237 |
| GPT 330-4 | 330 | 35 | 4 | 12.96 | 91 | 52 |
| GPT 400-6 | 400 | 50 | 6 | 22.23 | 250 | 99 |
| GPT 500-6 | 500 | 50 | 6 | 26.94 | 258 | 101 |
| GPT 742-7 | 742 | 93 | 7 | 47.03 | 1042 | 224 |
| GPT 742-8 | 742 | 94 | 8 | 53.56 | 1197 | 254 |
| GPT 880-6 | 880 | 154 | 6 | 61.9 | 2858 | 382 |
| GPT 880-8 | 880 | 156 | 8 | 84.6 | 3890 | 510 |
Our Advantages
- Lightweight trench sheet design with simple overlapping connection, ideal for fast reuse in pipeline installation
- ✔ High reusability depending on project conditions, reducing overall construction cost
- ✔ Strong adaptability to soft soil conditions, especially suitable for Middle East and Australia markets
- ✔ Full engineering support including design, calculation, and cost estimation for trench projects
