Omega Type (Hat / Pan) Steel Sheet Piles
Omega type sheet piles (also known as hat type, pan type, L type, or S type sheet piles) are cold formed steel sections with a hat-shaped cross-section. Their relatively thin thickness combined with wider sectional geometry enables efficient pile driving, reliable structural performance, and cost-effective solutions for light-duty retaining structures.
Manufacturing & Structural Characteristics

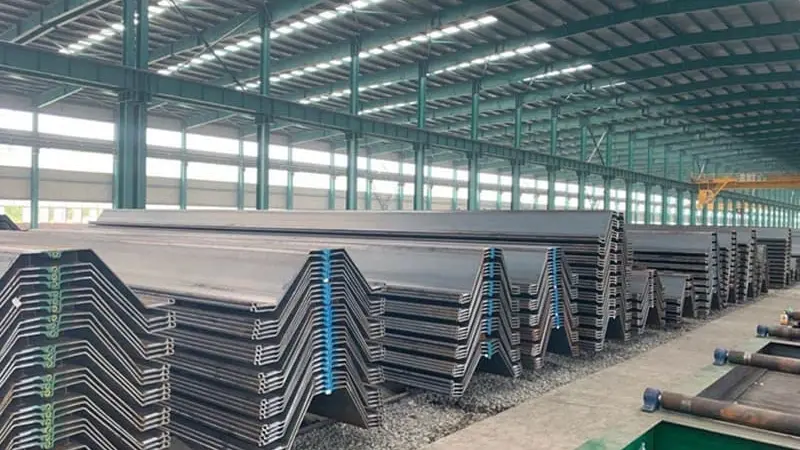

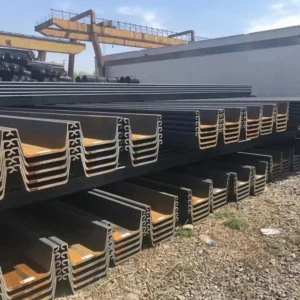

Omega type sheet piles are produced using cold forming technology, where steel plates are shaped through continuous rolling processes.
- Uniform thickness along the entire profile

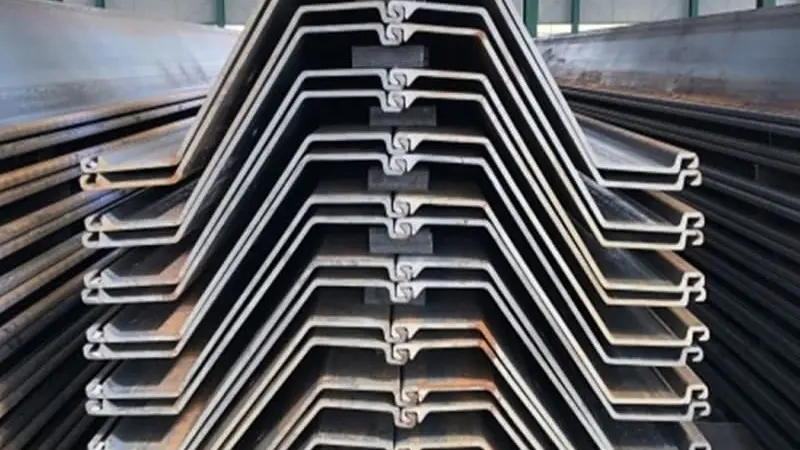

- Hat-shaped cross section with larger effective width
- Interlocks located at the outermost edges of the section
- Neutral axis of each pile aligns with the overall wall system
👉 Engineering Insight：
Because the neutral axis aligns with the wall system, Omega (L/S type) sheet piles can maintain stable structural performance across various soil conditions while improving deformation control during installation.
Product Characteristics
- Thin gauge design (starting from approx. 3mm)
- Larger sectional width compared to U/Z types
- Lightweight and easy handling
- High rigidity → better deformation control
- Capable of long-length driving
👉 Key Benefit：
Efficient driving performance with smaller equipment such as light hammers or compact rigs.
Naming & Market Classification
Omega sheet piles are known by different names globally:
- USA → Pan Type Sheet Pile
- Japan / Korea → Hat Type Sheet Pile
- Europe → L Type / S Type Sheet Pile
- Asia / China → Omega Type Sheet Pile
👉 Originally developed by Oriental Sheet Pile, widely used in Asia and increasingly adopted in other regions.
Engineering Application Scope
Omega (hat type) sheet piles are primarily used for:
- Drainage ditches
- Small retaining walls (residential / private projects)
- Golf course structures
- River bank protection (limited space conditions)
- Deadman walls / Anchored wall systems
👉 Design Positioning：
Light-duty retaining structures with economic efficiency as priority.
Technical Parameter Table

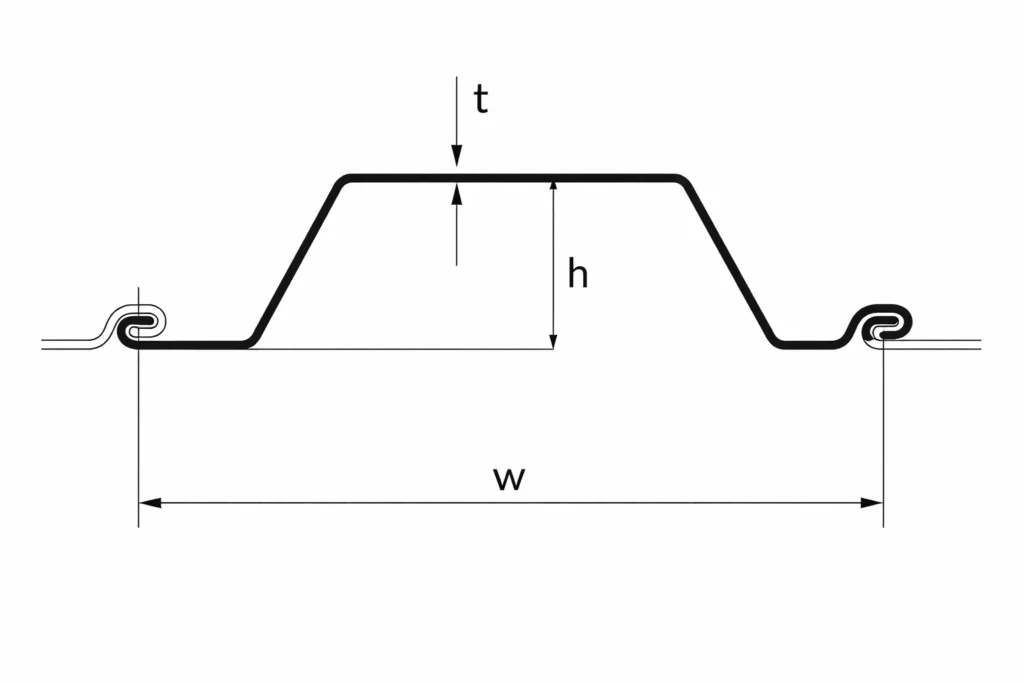

| Section | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg/m) | Inertia (cm⁴/m) | Section Modulus (cm³/m) |
|---|
| GPL 333-3 | 333 | 37 | 3 | 10.78 | 84 | 42 |
| GPL 333-6 | 333 | 75 | 6 | 25.9 | 766 | 196 |
| GPL 600-5 | 600 | 129 | 5 | 32.72 | 1728 | 257 |
| GPL 700-7 | 700 | 150 | 7 | 54.34 | 3591 | 474 |
| GPL 750a-8 | 750 | 254 | 8 | 78.6 | 13586 | 1093 |
| GPL 804-8 | 804 | 297 | 8 | 80.3 | 15995 | 1063 |
| GPL 900-8b | 900 | 350 | 8 | 93.6 | 23715 | 1365 |
| GPL 900-10.3 | 900 | 300 | 10.3 | 113 | 24400 | 1610 |
| GPL 900-12.5 | 900 | 368 | 12.5 | 147 | 45000 | 2450 |
| GPL 900-14 | 900 | 370 | 14 | 167 | 51100 | 2760 |
Key Engineering Insight
- Omega sheet piles generally have smaller section properties compared to U/Z types
- Best suited for short span and low load applications
- Significant cost reduction for non-heavy-duty projects
👉 Conclusion：
Ideal solution where cost efficiency + ease of installation are more critical than maximum structural capacity.
Engineering Advantages & Customization
- ⚙️ Rigid Structural Behavior – More rigid than U/Z sections, allowing better deformation control
- 📉 Cost-Efficient Solution – Reduced material cost for light-duty applications
- 📐 Wide Section Geometry – Larger width with thinner thickness improves installation efficiency
- 🚧 Easy Installation – Can be driven with smaller hammer, rig, or driver
- 🔗 Outer Interlock Design – Enhances structural continuity and performance consistency
- 🏗 Flexible Application Design – Suitable for deadman walls and anchored systems
- 🏭 Full Customization Capability – Machine adjustable for width, height, thickness
- 🧰 Construction Support Available – Guidance on hammers, rigs, drivers, dewatering systems
- 🌍 Wide Market Acceptance – Popular in Asia and Western Europe markets
Engineering & Construction Integration
Omega type sheet piles integrate both:
- Sheet pile manufacturing technology
- Construction application technology
We provide support for:
- Sheet pile driving equipment selection
- Sheet pile rigs and hammer recommendations
- Sheet pile strutting systems
- Sheet pile dewatering solutions
👉 Project Value：
Helping reduce total construction cost and improve installation efficiency.
