You are standing on a job site, and the engineer hands you a specification sheet full of numbers. Width, height, thickness, section modulus1. It looks like a foreign language.
A steel sheet pile size chart2 is a table that lists the key physical and structural properties of different pile profiles. These properties include the width, height, thickness, weight, and section modulus1, which tells you how strong the pile is against bending.
](https://cnsteelplant.com/wp-content/uploads/2026/03/Comparison-Table-of-Article-Information-10.webp)
I remember the first time I had to help a client in Dubai select the right pile. He sent me a long email with just a project description and a question: "What size do I need?" I could not answer him without a chart. That experience taught me how vital these numbers are. Let me walk you through what these charts mean and how to use them.
What is the difference between U and Z sheet piles?
When you look at a pile for the first time, the shape is the most obvious thing you notice. Some look like a U, and some look like a Z. But this is not just about looks.
The main difference between U and Z sheet piles is the position of the interlocks1. In U piles, the interlocks1 are at the tips of the flanges, near the neutral axis. In Z piles, the interlocks1 are at the outer edges, which gives Z piles a higher section modulus for the same weight.
](https://cnsteelplant.com/wp-content/uploads/2026/03/Article-images-7.webp)
How Shape Affects Performance
Let me break this down into simple terms. The shape of the pile changes how it handles the stress from soil and water pressure. I have supplied both types to projects all over the world, and each has its own job.
The U Type Profile2
U piles are symmetric. They look like a shallow trough. The interlocks1 sit right in the middle of the web. This design makes them very good for certain jobs. Because they are symmetric, they are easier to handle and drive. You can rotate them, interlock them from either side, and they are forgiving on site. The riverbank project in Southeast Asia I mentioned used U type piles. The contractor chose them because the installation was straightforward, and they needed a wall that could handle water pressure from one side. The U shape worked perfectly for that.
The Z Type Profile3

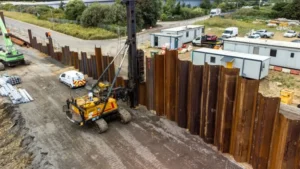

Z piles look like a zigzag. The interlocks1 are at the outer corners. This shape pushes the steel material as far away from the center as possible. In engineering terms, this increases the moment of inertia4 and the section modulus. This means a Z pile can resist much more bending force than a U pile of the same weight. For deep excavations or tall retaining walls, Z piles are usually the better choice .
Real World Numbers
Here is a simple comparison based on common sizes I deal with:
| Feature | U Type Pile | Z Type Pile |
|---|---|---|
| Typical Width Range | 400 mm to 750 mm | 580 mm to 700 mm |
| Interlock Position | On the neutral axis (center) | On the outer flanges (edges) |
| Structural Efficiency | Good for moderate depths | Excellent for deep walls |
| Common Use Case | River banks, temporary works | Deep excavations, ports |
| Example Section | 400x125x13mm | SPZ 26 700x459x12.3mm |
I once spoke with an engineer in Australia who was designing a deep basement near the ocean. He originally specified a heavy U pile. After we ran the numbers together, he realized a Z pile with the same strength was actually lighter. It saved him money on steel and on shipping. That is the practical difference these shapes make.
What is the difference between ZZ1 and AZ sheet piles?
Now we get into the alphabet soup of piling. You see letters like ZZ1 and AZ, and you might think they are just product codes. They are more than that.
ZZ1 and AZ are specific product lines, mostly from European mills like ArcelorMittal. The difference is in the design of the interlock and the range of sizes. AZ piles are a modern, high-efficiency Z profile2. ZZ1 is an older term sometimes used interchangeably, but AZ specifically refers to a range with optimized interlocks for better driving performance.
](https://cnsteelplant.com/wp-content/uploads/2026/03/Article-images-6.webp)
Breaking Down the Naming Systems
This part can get confusing because different manufacturers use different names. But I have learned that understanding the naming helps you find the right product faster.
The AZ Series
AZ piles are a specific brand of Z piles. They are hot-rolled and designed with a special interlock that sits on the neutral axis, even though the pile is a Z shape . This gives them the best of both worlds. You get the high strength of a Z profile2, but the interlock is protected from the worst of the driving stresses. They are available in a wide range of sizes, from AZ 12 all the way up to AZ 50. The number usually relates to the section modulus. A bigger number means a stronger pile.
What About ZZ1?
In some older literature or general discussions, you might see "ZZ1" used to describe Z-shaped piles with double symmetry. But in the modern market, when you see "ZZ1," it is often a generic term. The dominant product line you will encounter from major manufacturers like ArcelorMittal is the AZ series3 . They also have ESZ and other variations.
The Larssen Connection
Here is an interesting detail. Many Z piles, including the AZ series3, actually use a variation of the Larssen interlock system4 . The Larssen system was originally developed for U piles. It has a distinct shape that grips tightly and resists water seepage. So even though the profile looks like a Z, the way it connects to its neighbor might be based on the same trusted design as a classic U pile. This is a good example of how manufacturers take the best features from different designs to create a better product.
When I talk to buyers in Jordan or Kuwait, they often just say "I need Z piles." But when we get into the details, I ask them if they need AZ specifically. The answer depends on the mill certification and the project specs. Knowing the difference helps me get them exactly what their engineer drew on the plan.
What are the dimensions of a piling?
When someone asks for dimensions, they usually mean the physical size of a single piece of steel. But in piling, "dimensions" cover a few different measurements.
The dimensions of a steel sheet pile include the width, height, and thickness of the steel. These measurements determine how the pile fits with others and how strong it will be in the ground.

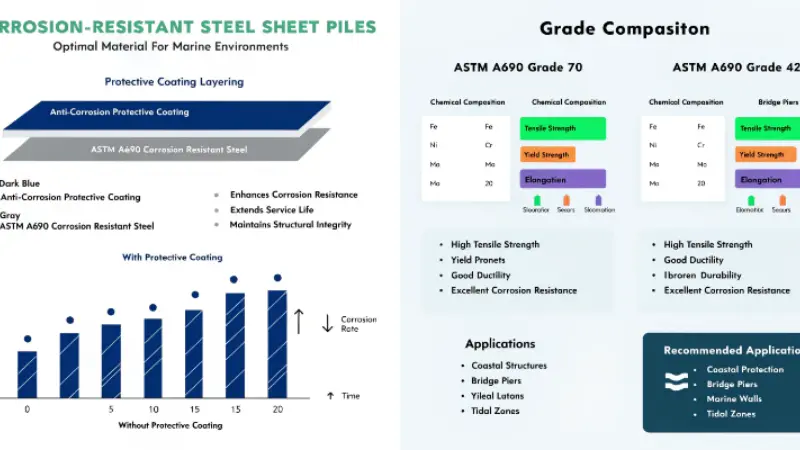

](https://cnsteelplant.com/wp-content/uploads/2026/03/Comparison-Table-of-Article-Information-7.webp)
The Key Measurements You Need to Know
I have found that newcomers to the industry often mix up these terms. Let me define each one clearly based on the data I use every day.
Width (Effective Width)1
This is the total width of one piece from interlock center to interlock center . For example, a common U pile might be 400mm wide . When you build a wall, you multiply this width by the number of piles to get the total length of the wall. A wider pile means fewer pieces to handle and drive, which saves time. Modern piles can be up to 750mm or even 800mm wide .
Height (Section Height)2
This is the depth of the profile from the front to the back. For a U pile like the 400×125, the height is 125mm. This height contributes to the pile’s strength. A taller section usually has a higher moment of inertia because the steel is further from the bending axis.
Thickness3
This is simply how thick the steel web and flanges are. It is measured in millimeters. Common thicknesses range from 5mm up to 18mm or more . A thicker pile is heavier and stronger. But sometimes, a pile with a taller height and thinner steel can be stronger than a short, thick one.
Length4
This is the total length of the pile from end to end. It can be 6 meters, 12 meters, or even longer. Piles can be spliced together to make longer lengths, but it is always better to get single pieces if the transport allows it.
A Real Example
Let us look at a real product I have supplied before: the 400×125 U type .
- Width: 400mm
- Height: 125mm
- Weight: About 60 kg per meter
- Section Area: 76.42 cm²
When a contractor in Pakistan asked me for these, he knew exactly what he wanted. The 400mm width was standard for his wall design. The 125mm height gave him enough strength for a 6-meter deep excavation. And the 13mm thickness was the standard rolling for that profile. These numbers told me everything I needed to quote the job.
What are standard steel sheet sizes?
This is probably the most common question I get from new buyers. They want to know what they can order without waiting for a special mill run.
Standard steel sheet pile sizes vary by region and manufacturer, but common widths are 400mm, 600mm, and 750mm for U profiles1. For Z profiles2, common widths are 630mm, 675mm, and 700mm. The most common thicknesses range from 8mm to 14mm.

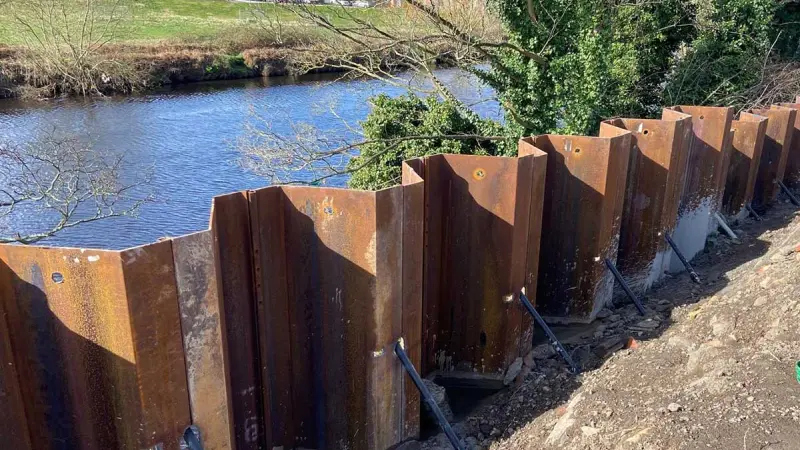

](https://cnsteelplant.com/wp-content/uploads/2026/03/Article-application-5.webp)
A Reference Guide to Common Dimensions
Over the years, I have compiled a mental list of the sizes that move quickly. These are the ones mills stock regularly. Here is a practical guide based on my experience and industry data.
Standard U Type Profiles
U piles are often measured by their width and height. The 400mm wide series is a classic. It has been a standard for decades . The 600mm wide U pile is now very common for temporary works and general retaining walls . The 750mm wide U pile is also available and offers great efficiency .
| Standard U Type | Width (mm) | Height (mm) | Common Thicknesses (mm) |
|---|---|---|---|
| 400 Series | 400 | 85, 100, 125, 170 | 8.0, 10.5, 13.0, 15.5 |
| 600 Series | 600 | 130, 180, 210 | 10.3, 13.4, 18.0 |
| 750 Series | 750 | 205, 320 | 10.0, 12.0 |
Standard Z Type Profiles
Z piles are designed for efficiency. The 630mm and 700mm widths are very common in the AZ range. The height of Z piles is usually taller than U piles for the same width, which gives them their strength advantage.
| Standard Z Type | Width (mm) | Height (mm) | Common Thicknesses (mm) |
|---|---|---|---|
| 630 Series (AZ) | 630 | 426 | 12.0 |
| 635 Series | 635 | 379 to 421 | 7.0 to 13.0 |
| 675 Series | 675 | 490 to 492 | 12.0 to 13.5 |
| 700 Series (SPZ) | 700 | 314 to 500 | 8.5 to 16.0 |
A Note on Custom Sizes
While these are the standards, almost all mills can roll custom sizes3. The tables from manufacturers always include a note that they can produce effective widths from 400mm to 750mm and heights up to 900mm . If your project needs a specific dimension for a unique design, it is possible. It just might take a little longer and cost a bit more.
I had a client in Iraq who needed a very specific height that was not common. We worked with the mill to do a special rolling. It took extra time, but the piles fit his design perfectly. So do not be afraid to ask if you do not see your size on the standard chart.
Conclusion
Understanding a steel sheet pile size chart1 is the first step to choosing the right product2 for your project and ensuring you get the strength you need without paying for extra steel you do not want.
-
